UPS,
flexible, reliable
and innovative.

Line Interactive - Sine Wave



The LINE INTERACTIVE TECHNOLOGY with sinusoidal waveform output, provides excellent protection to all computer loads and to the utilities which feature a switching power supply input. However, it can safely feed also more “demanding” loads such as transformers, motors, pumps etc. where the switching time between the main supply and the inverter must not affect the operation load. Compared to the STEP-WAVE models, the sinusoidal waveform creates less noise, and it is more indicated to feed delicate and sophisticated equipment.

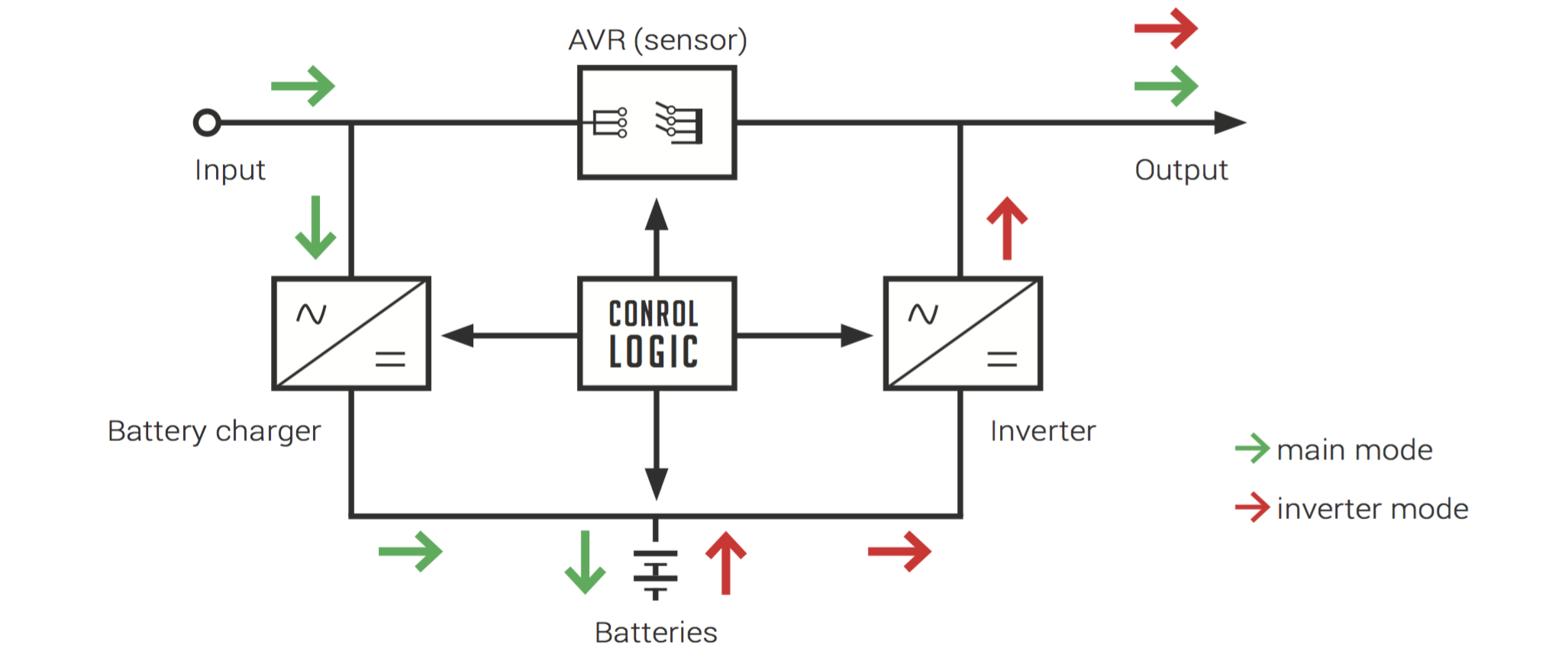

HOW DOES A LINE INTERACTIVE UPS WORKS?

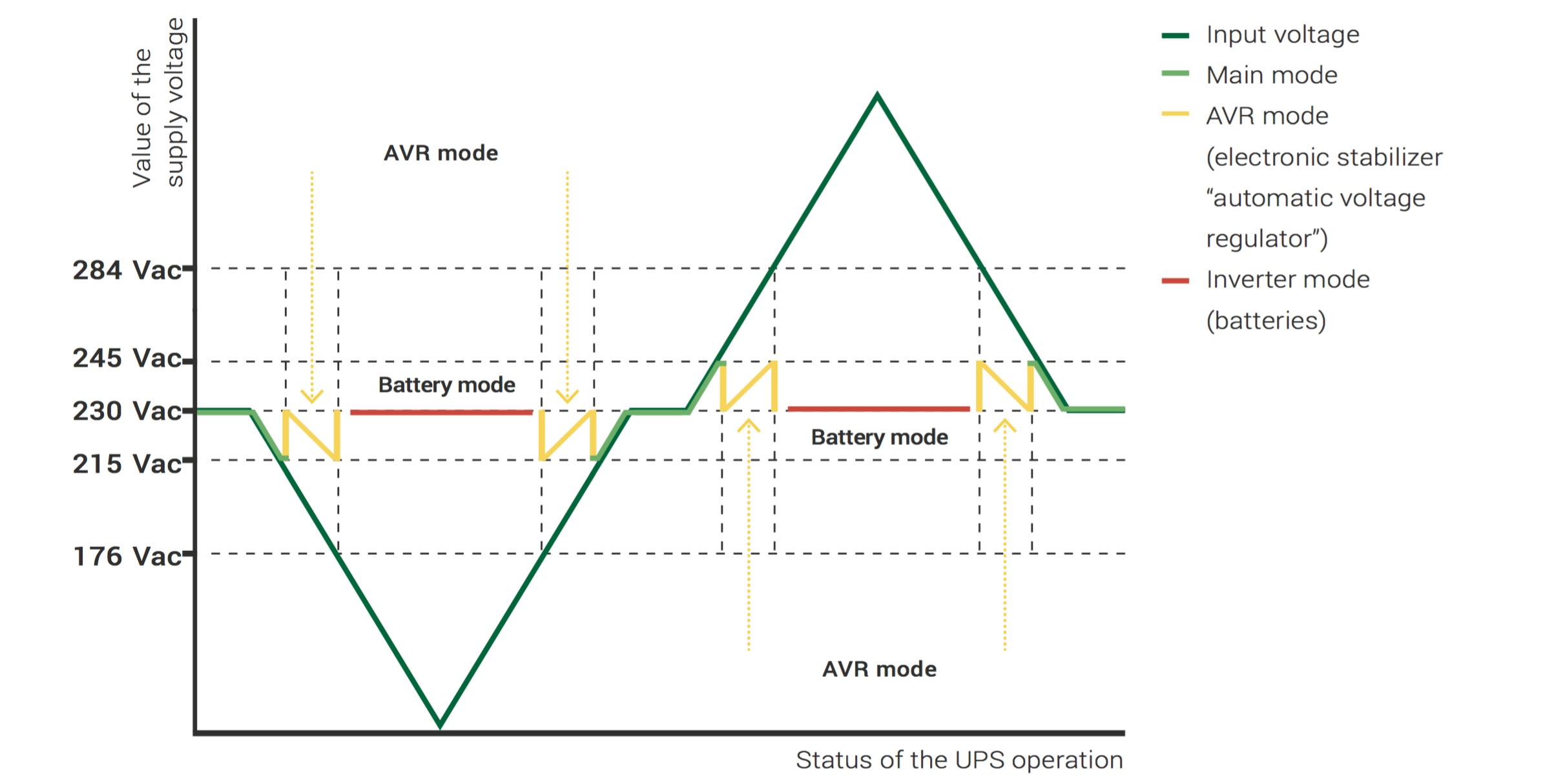

Even in this case, in main mode, the UPS with sinusoidal line interactive technology, feeds the load through the power supply network by filtering it in advance and stabilizing it thanks to an AVR (stabilizer electronic “automatic voltage regulator). At the same time it charges the batteries and keeps them efficient. If the supply voltage is too low, too high or is missing, the UPS feeds the load through an inverter which takes energy from the batteries. Output waveform will be SINE-WAVE.




Basic



This category includes machines designed focusing on the IT market. They are very ef cient UPS when it comes to feed and protect computer loads and/or IT equipments (servers, PC networks, professional NAS, even complex network devices, etc.). Dimensions and weight of these models are kept as lower as possible considering the bigger number of batteries and consequently the longer autonomy. Being designed for the IT market, the communication perofrmance of this UPS must be at the top. There are available a wide range of hardware and software solutions to interface all operating systems or to achieve the redundancy of the power supply.

The machine works plug&play on WINDOWS systems and on NAS. There are also other software solutions available to interface all operating systems on different levels, even the more complex and virtualized. (WMWare etc..)

Key points
  • Ability to power all IT equipments, even the most complex
  • Ability to interface with all operating systems
  • Possibility to manage via hardware or software the systems autonomy
  • Possibility to obtain longer autonomies with high capacity batteries, rechargable by the UPS
  • Plug & play on WINDOWS systems and NAS



Premium



These UPS can also be used in working places different from the IT world. They’re able to power typically industrial loads as well without disturbances or interferences, protecting users and remaining immune to disturbances caused by the industrial loads themselves or by the power supplies of the industrial environments. The effort put in this type of UPS, is dedicated to the reliability and the use of the highest quality electronic components and of the most modern constuction techniques, made this result possible.

Dimentions and weights of this machines are higher than the ones of the BASIC category, because in the design phase are also considered the autonomy expansion perofrmances with external battery boxes. This implies the power electronic overdimensioning and the heat dissipation for continuous functioning and for long autonomies. The communication performance is at the highest levels and there are also available a wide range of hardware and software solutions to interface all the operating systems or to implement the redundancy of power supply. Besides being con gured plug&play on WINDOWS systems and on NAS, these UPS features also various software solutions to interface all operating systems on different levels, even the more complex and virtualized (VMWare, etc..).

Key points
  • Ability to power all types of loads
  • Reliability in continuous operation
  • Possibility to obtain longer autonomies with high capacity batteries, rechargable by the UPS
  • Plug & play on WINDOWS systems and NAS
  • Software interfacing with management and shutdown

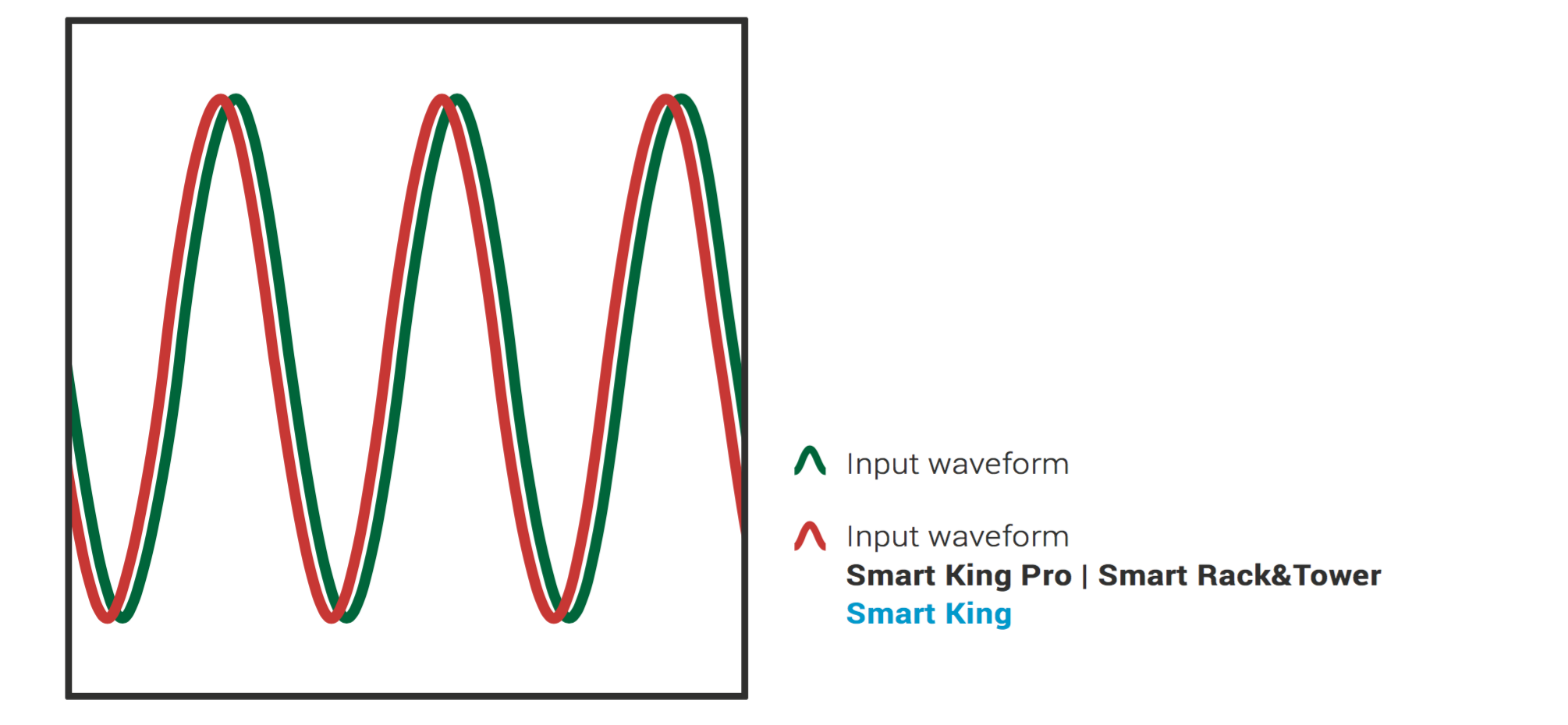

Input and output waveform in main mode
